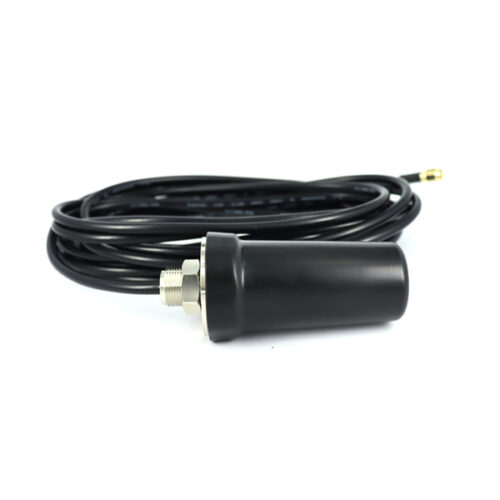

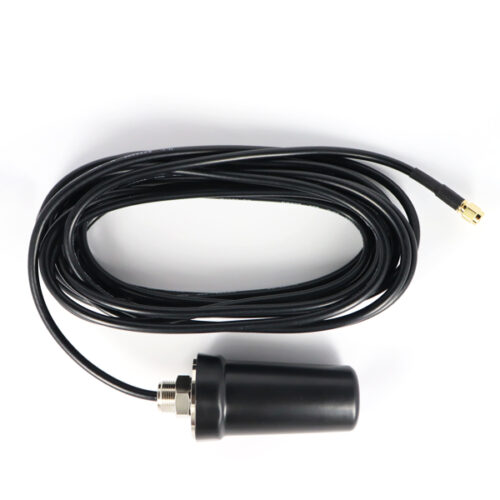

EXTERNAL BOOSTER ANTENNA
The External Booster Antenna is a compact low-profile omnidirectional LTE antenna that provides excellent coverage for mobile and fixed data applications from 698 MHz to 3.8GHz. The antenna features an attractive, compact housing which can be used in both indoor and outdoor applications. This antenna is fitted with a 15.7mmᶲ stud mount (fits a 16mmᶲ hole) incorporating an integrated rubber O-ring seal and is IP65 rated.
- Description
- SPECIFICATIONS
Description
Features:
– Polycarbonate radome is ideal for outdoor use
– Attractive, low profile design for maximum overhead clearance
– Stud mounting offers ease of installation in the field
– Ingress protection to IP65
– Other cable/connector configurations available upon request
| Cable And Connector | 5.0m RG58 Terminated with SMA(M) |
| Connector | SMA(M) |
| Frequency | 698-960 / 1710-2170 / 2300-2700 / 3300-3800 MHz |
| Nominal Gain Dbi | 2 / 3 / 5 / 5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Radome Diameter Mm | 50 |
| Construction | UV Stable Black Polycarbonate Radome |
| Tuned bandwidth | Full |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3500-3800 |
| IP Rating | IP65 |
| Brand | RFI |
| Weight [kg] | 0.17 without cable |
| Height [mm] | 80 |
