Description

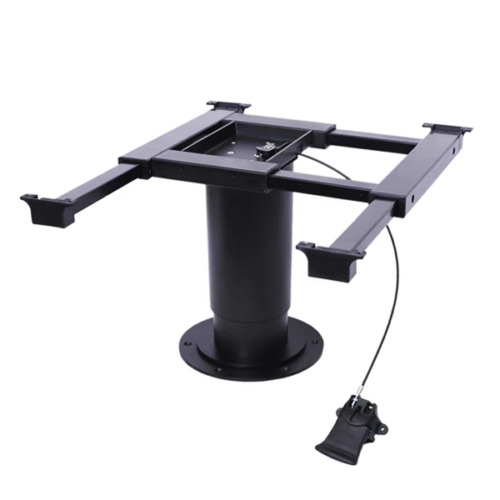

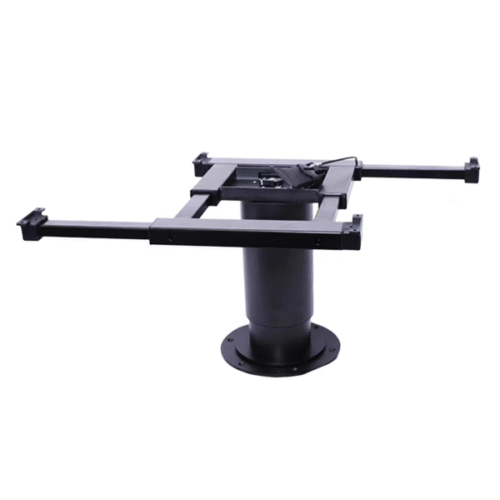

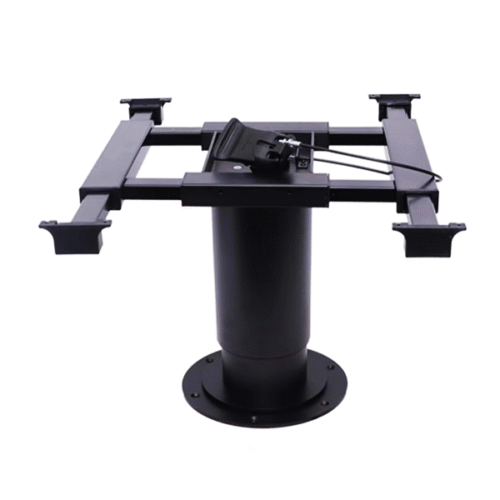

• Business office & travel multi-purpose manual lifting table leg
• Type: manual operation
• Lifting speed: within 3s from bottom to top
• Min Height: 340mm±5mm
• Max Height: 740mm±5mm
• Length of bracket: 460mm
• Stroke in X direction: 150mm.
• Width of bracket: 545mm
• Stroke in Y direction: 185mm
• Tabletop can slide in X /Y direction, also rotate in E, S, W, N direction
• Made of aluminium alloy
• Applicable to all kinds of RV, travel trailer, living vehicle, commercial vehicle, MPV, SUV…

Download:

Installation-Guide_Lifting-table-frame
