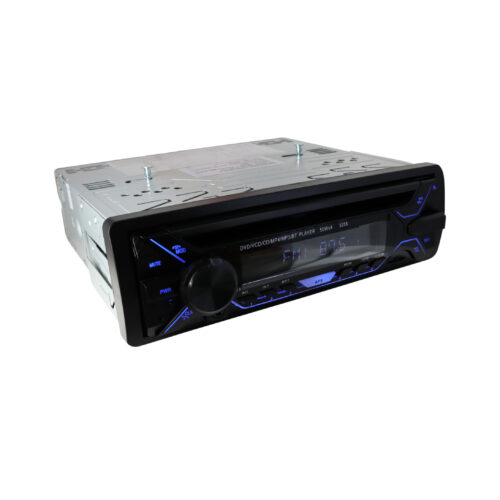

SINGLE DIN DVD/CD/BLUETOOTH STEREO

DOUBLE DIN DVD/CD/BLUETOOTH MEDIA PLAYER
13.3ʺ FLIP DOWN TFT LCD MONITOR WITH DVD PLAYER
0 out of 5

Category: Tag:
Add to Wishlist

Description

  • ESP Electronic system
  • Electronic Audio Controls (VOL/BAS/TRE/BAL/FAD
  • Last memory press scan
  • Digital Clock Display
  • 2 Channels RCA output
  • 60W x 4 High Power Output
  • Compatible with DVD/DVIX/MPEG4/VCD/MP3/
  • WMA/CD/ CD-R/RW/USB/SD/MMC SLOT.
  • RDS Radio Function

General

  • Power Requirements: 12V DC
  • Load Impedance: 4 OHM
  • Max. Power Output: 50Wx4
  • Tone Controls: ±8~12dB(Bass 100Hz, Treble10KHz)

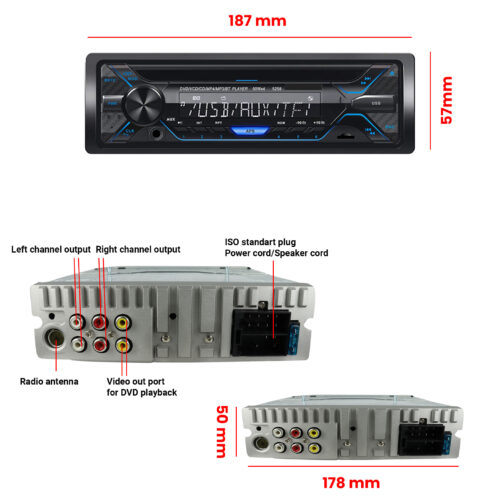

  • Dimensions: Approx.169x182x53mm(dxwxh)
  • Mounting Dimensions: Approx.169x182x53mm(dxwxh)
  • Weight: Approx. 1.75kg

DVD Deck Section

  • Discs Played: MP4,DVD,VCD1.0/1.1/2.0/3.0,MP3,CD,CD-R,CD-RW,PICTURE-CD
  • Video System: AUTO/PAL/NTSC
  • Mounting Angle: 0 to +/-25o

Video Section

  • Video System: 4:3 Letter Box and 4:3 Pan Scan
    Video Output level: 1.0Vp-p 75 ohms
  • Horizontal Resolution: 500

Audio Section

  • Maximum Output level: 2Vrms(+/-3dB)
  • Frequency Response: 20 to 20Khz
  • Signal-to-noise Ratio: 85dB
  • Separation: 80dB

AM Tuner Section

  • Frequency Range: 522-1620(Europe/China),530-1710(U.S.A )
  • IF Range: 10.7MHz
  • Usable Sensitivity(-20dB): 25dB

FM Tuner Section

  • Tuning Range:87.5-108(Europe/China),87.5-107.9(U.S.A)
  • IF Range:10.7MHz
  • Usable sensitivity (-30dB):15dB
  • Signal-to-noise Ratio:60dB
  • Stereo Separation:30dB(1KHz)
  • Frequency Response: 30~12000Hz
